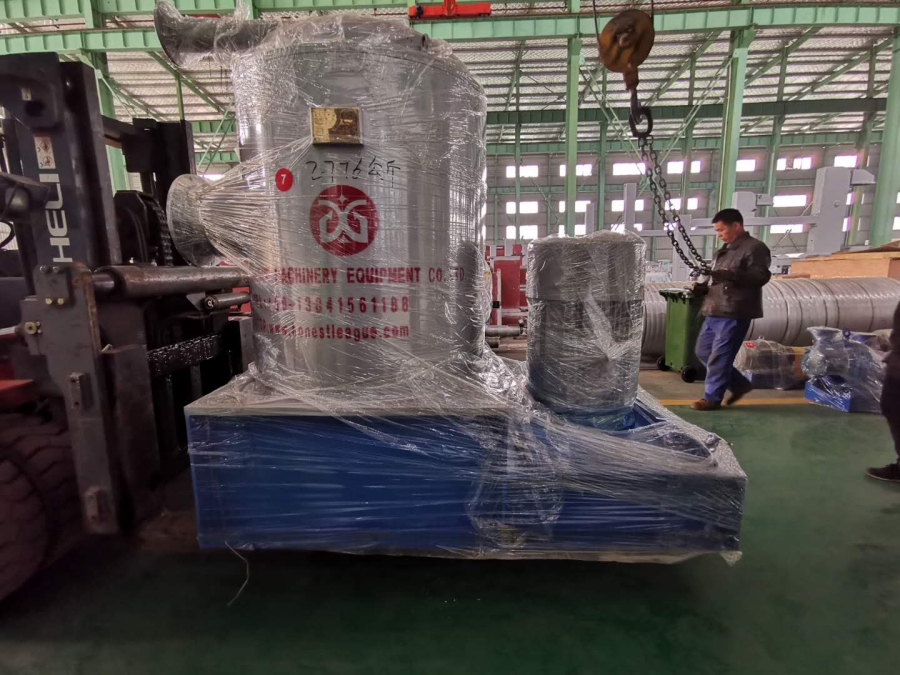

Inflow Pressure Screen


Inflow Pressure Screen is used for fine screening equipment of the wood pulp, straw pulps and waste paper pulps, particularly is used in the Approach Flow before the Paper Machine.

Features of Inflow Pressure Screen:
1. The rotor is rotated outside of the sieve drum, and the heavy impurities flow away from the sieve drum to avoid clogging the screen cut and prolong greatly the service life of sieve drum;
2. It has low pulse, high screening efficiency and reliable operation.

Technical parameters of Inflow Pressure Screen:

Model

NLS21

NLS22

NLS23

NLS24

NLS25

NLS26

NLS27

NLS28

NLS29

Screening Area (m²)

0.6

1.2

1.7

2.1

3.1

4.0

5.1

6.1

7.3

Feeding pulp concentration (%)

0.3-0.8

Production capacity T/D

Slotted screen

24-45

50-80

80-120

100-160

150-300

180-320

220-400

260-480

350-600

Mesh screen

30-60

70-130

100-180

140-260

250-400

260-520

350-600

420-700

500-900

Motor power (KW)

18.5

22

30

37

45

55

75

90

110

Pressure of pulp stock feeding (Mpa)

≤0.4

Remarks

The parameters above will be adjusted correspondingly based on the different raw materials, and the final parameters see the technical protocols.
