Pulping equipment

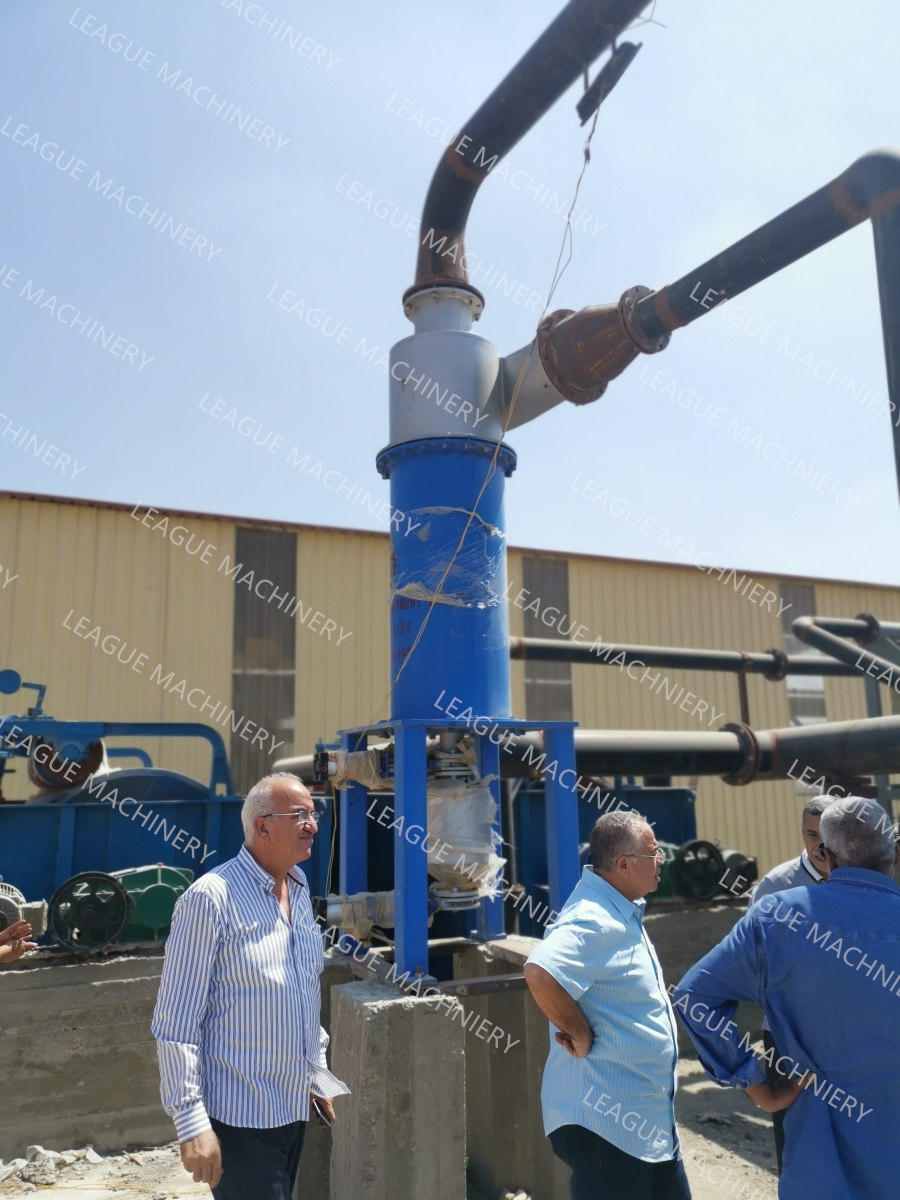

High Consistency Slag Remover


High-Consistency Slag Remover is the ideal paper making equipment used to remove the metal, sand and other heavy impurities with a large specific gravity in the paper pulp at a higher concentration to obtain the pulp stock of high quality. Meanwhile, it is also the necessary equipment for pulping and purifying of waste paper.

Features of High-Density Cleaner:

1. With super observation window, it is intuitive and easy to operate and control.

2. Long separation cone and high slag removal efficiency.

3. The slag removal concentration is between 2% and 5%.

4. Special and quick-opening control valve, easy operation and no slag inclusion.

5. The cone is made of ceramic materials and has a long service life.

Technical parameters of High-Density Cleaner:

Model                                              ZSA1A           ZSA2A        ZSA3A        ZSA4B         ZSA5B       ZSCG6B

Carrying capacity (L/min)               800—1500      1600—2700    3000—4600    4500—5800   5800—7500    8000—12000

Diameter of inlet and outlet (mm)        Ø200

Feeding pulp concentration (%)          2–5

Pressure of pulp stock feeding (Mpa)    0.2—0.35

Discharging pulp pressure (Mpa)       0.01–0.05

Equilibrium water pressure (Mpa)       0.2—0.35

Equilibrium water quantity of flow (L/min) 20—60            35—60        35—80         45-100        55-120       65-140

Sediment tank volume (L)                80                100           100            100

Deslagging way                Manual or pneumatic

Weight (Kg)                           520               520           950            1100         1200         1200
